Bubble Bump 2P

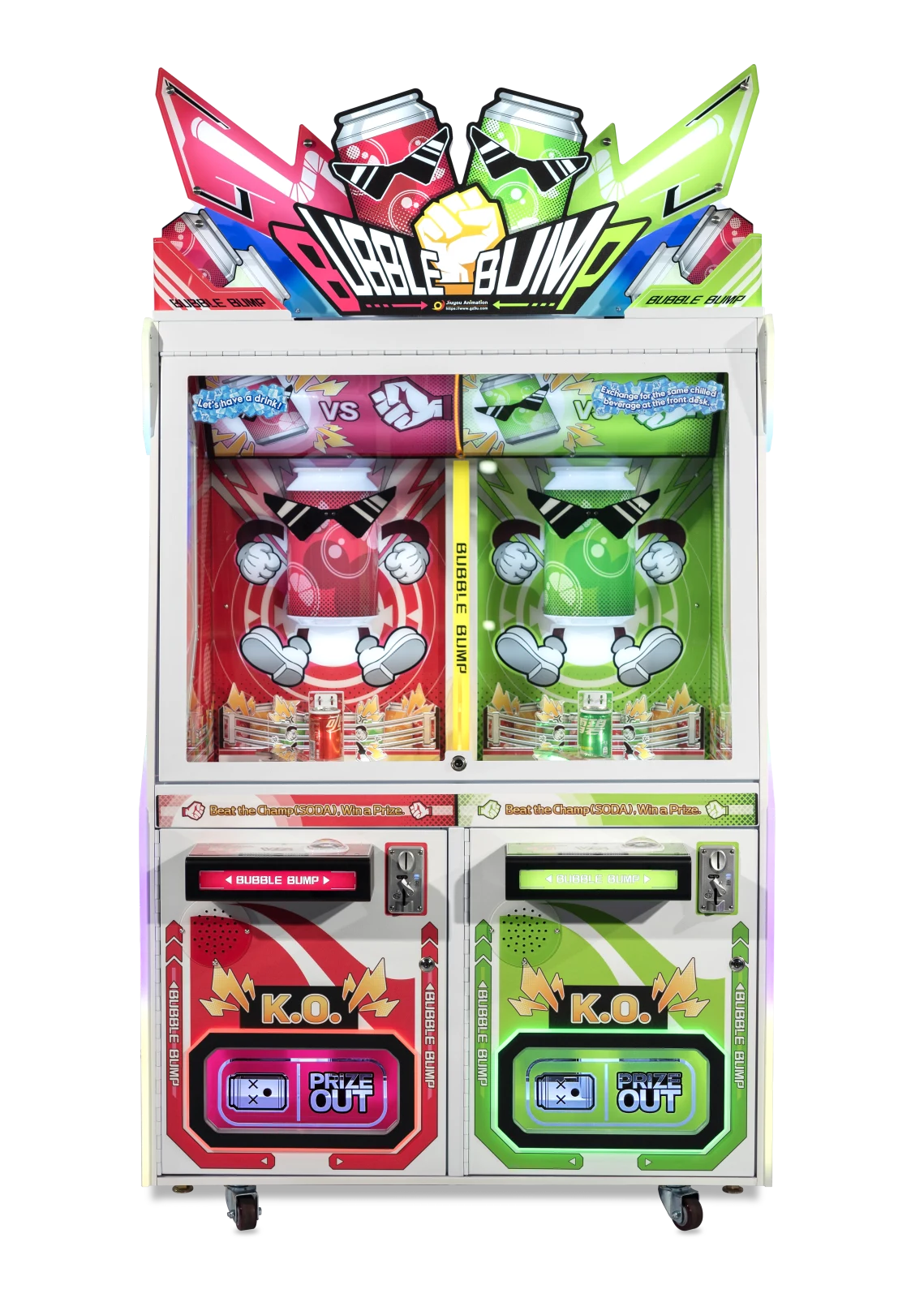

Bubble Bump 2P is a two-player canned-drink prize machine.

Each player watches a moving arrow, presses at the right moment, and tries to knock down a fixed target.

If the target falls, the player receives one canned drink from the prize outlet.

Yes.

Bubble Bump 2P has two independent play positions.

Each position has its own button, moving-arrow mechanism, target, storage channel, prize outlet, cooling plate and payout setting.

One player’s result does not affect the other side.

The player watches the moving arrow swing from side to side.

When the arrow reaches the centre, the player presses the button.

The arrow stops and moves forward toward the fixed target.

If it is correctly aligned and the target falls, the player wins one canned drink.

If the arrow misses or does not knock down the target, the play ends without a prize.

The arrow and target reset automatically.

Yes.

The payout setting can be adjusted from 1 to 255. The factory default is 3.

Over a larger number of plays, a setting of 3 means that approximately one play in three reaches a prize opportunity.

This does not mean every third play is guaranteed to win.

The player still needs to press at the right time and align the moving arrow with the target.

Not in the standard version.

The standard program does not include a forced-win or guaranteed-prize function.

A custom version can be evaluated for selected projects.

The standard version uses 330 ml cans measuring approximately Ø66.7 × H117 mm.

A tested 355 ml / 12 oz version is also available.

The required version should be confirmed before production.

Not with the standard parts.

The two versions use different storage channels.

Changing the can format later may require replacement parts and technical support.

The standard machine is not designed for bottles or unrelated prize shapes.

Other products may be considered only when they are packed in a stable round can with confirmed dimensions.

Each position holds approximately 46 cans.

The total machine capacity is approximately 92 cans.

It automatically delivers one can to the prize outlet after a successful win.

It does not refill its own storage channels.

Staff need to open the front door and add more drinks when the channels are low or empty.

Staff open the front door and place the cans into each position’s storage opening.

The cans roll into the storage channel by gravity.

No.

Each position has a semiconductor cooling plate near the dispensing area.

Approximately three to four cans can make direct contact with the cooling zone.

During factory testing, a room-temperature drink reached an internal temperature of approximately 5°C after about 15 minutes.

The ambient temperature during the test was approximately 25°C.

Actual cooling depends on the starting temperature, room temperature, ventilation and play frequency.

Not always.

If prizes are delivered in quick succession, the next can may not remain on the cooling plate long enough to reach the same temperature.

It can produce a small amount of condensation around the cooling area.

Staff should include this area in normal cleaning checks.

The machine also needs suitable ventilation space.

It depends on daily play volume, actual prizes delivered, payout settings and opening hours.

The total capacity is approximately 92 cans.

Drink levels, prize outlets and the cooling area should be checked during normal floor rounds.

The standard machine uses a TL-131 coin acceptor.

It can also be prepared for common commercial card systems.

Send the payment-system manual or interface requirements before production.

No.

It is a direct-prize machine.

A card system may be used for payment, but the machine does not output physical tickets or e-ticket rewards.

Not on the standard cabinet.

There is not enough installation space.

The machine can be prepared for 110–220 V according to the destination market.

CE documentation is available for the current model.

For North American projects, UL-market material and technical requirements can be reviewed on request.

This does not mean the standard machine has full UL certification by default.

No.

The standard machine is designed for indoor commercial use.

Direct sunlight, high humidity, salt air and unstable outdoor conditions can affect sensors, electronics, cooling performance and moving parts.

Possible venues include:

• Family entertainment centres
• Shopping mall arcades
• Bowling centres
• Medium-sized indoor arcades
• Other staffed commercial entertainment venues

The final decision should consider floor space, local drink value, price per play, payout setting, ventilation and refill routines.

Compare the local drink cost and perceived prize value with the planned price per play.

Also consider payout setting, venue traffic, machine position, local spending habits, prize laws and beverage requirements.

A high play price with a low-value drink may create a poor price-to-prize relationship.

Recommended parts can include:

• Sensors
• Motors
• Power supplies
• Buttons
• Semiconductor cooling plates
• Cooling fans
• Relays
• Prize-delivery switches

The final quantity depends on the number of machines and the distance from technical support.

Regular checks should include:

• Drink levels
• Buttons and sensors
• Moving-arrow mechanisms
• Target reset mechanisms
• Prize outlets
• Storage channels
• Cooling plates
• Cooling fans
• Condensation
• Ventilation openings
• Unusual noise or movement

Bubble Bump 2P has two independent play positions and holds approximately 92 cans.

Bubble Bump 3P has three independent play positions and holds approximately 138 cans.

Both versions use the same timing-based knockdown gameplay, adjustable payout setting, direct canned-drink prize and semiconductor cooling system.

Bubble Bump 2P uses a smaller cabinet and lower power.

Bubble Bump 3P offers one additional play position and higher total capacity.
